Product Overview

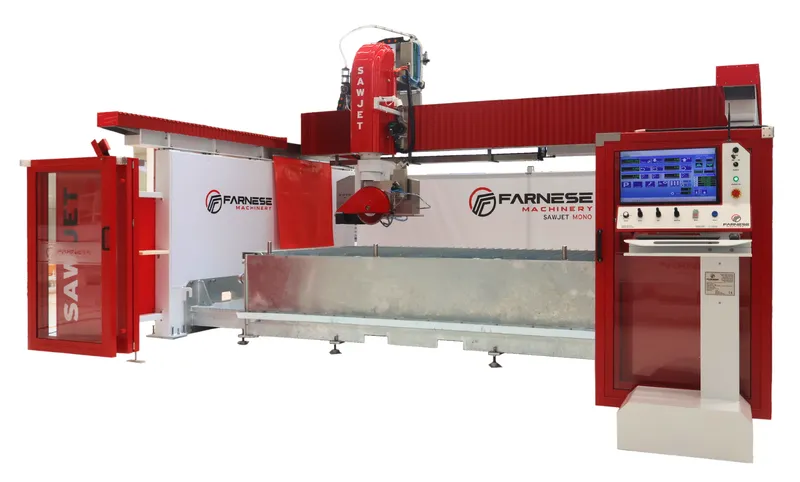

The SawJet from Farnese features robust construction, guaranteeing long-lasting reliability and performance. It’s the perfect solution for fabricators who require both a bridge saw and a water jet but lack the floor space or budget for two separate machines. Built on a MONOBLOCK platform, the SawJet shares the same DNA as the TECHNICUT, ensuring it meets all your production needs. The included CAD/CAM system makes working with templates or DXF files effortless, allowing you to program any 2D shapes for cutting, including vacuum moves. The control station is equipped with an intuitive touch screen for easy operation. Farnese machines are known for their user-friendly software and time-saving features.
Features
- Easy-to-use interface and software
- Onboard CAD/CAM system
- AlphaCAM compatible: Advanced CAD/CAM software solution for complex jobs
- Fully galvanized frame and tank
- Automatic lubrication system
- Full 5-axis CNC controlled saw
- Combination head: Saw Blade plus Waterjet for virtually limitless cutouts
- Tilting table: Simplifies loading and unloading of slabs
- Vacuum material manipulation
- Material thickness measuring probe
- Blade diameter measuring probe
- Onboard overhead camera
- Laser cutting guide: Allows manual mode cutting with the laser serving as a visual guide for accurate blade positioning when in use.
Features & Specifications
| Brand | FARNESE |
|---|---|
| Vendor Manufacturing Number | SAWJET W KMT PUMP |
| Length | 314 11/64" |
| Width | 232 9/32" |
| Height | 149 39/64" |
| Weight | 16,535 lbs. |
| Blade Tilt | Yes |
| Tilting | Yes |
| X-Stroke | 157 31/64" |
| Y-Stroke | 118 7/64" |
| Z-Stroke | 14 61/64" |
