ADI UHS 40 Series Profile Wheel T16 22mm Bore Position 1

Item Temporarily Out of Stock
We are working hard to re-stock inventory of this item. Place your order, and we’ll email you when we have an estimated delivery date. You won’t be charged until the item ships.

Product Overview

ADI UHS® is the premier CNC tooling in the stone industry. UHS® delivers the fastest feed rates, longest tool life and the highest polish quality of any profile wheels in the stone industry. High volume fabrication shops and anyone familiar with UHS® understand an investment in UHS® pays dividends in the form of the lowest cost per linear meter with the best possible finish quality. In addition to the tool quality and performance, an investment in UHS® also means access to ADI's state of the art reshaping service and industry leading support from GranQuartz's team of technicians.

Features

  • Unsurpassed production speed with unmatched tool life and profile integrity
  • Every tool is individually precision balanced for optimum performance
  • Precision manufactured water slots deliver more water where it is needed
  • Customized pre-set labels on each wheel reduce set up time by 50%
  • ADI® certified reshaping service available

Features & Specifications

Brand ADI
Vendor Manufacturing Number PB161484
Wheel Type UHS
Tooling Series 40

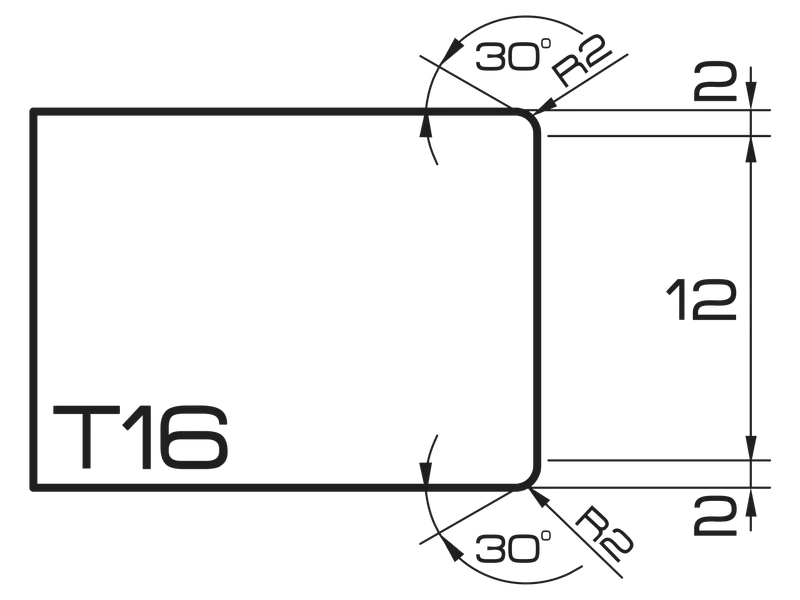

Profile T16
Arbor/Bore 22mm
Inner Diameter 40mm
Outer Diameter 48mm
Material Thickness 1.6cm
Position/Step/Grit 1
Feed Rate 50-120 in/min
RPM 5,500-6,000
Stock Removal To Shape
Dimensions R2
Weight 1.2 lbs
